規(guī)格
|
H2
|
H3
|
Φd
|
ΦD
|
ΦD1
|
L
|
L1
|
L2
|
重量(KG)
|
|
DN40
|
193
|
69.5
|
20
|
110
|
88
|
154.5
|
33.5
|
30
|
3.09
|
|
DN50
|
211
|
70
|
20
|
125
|
96.5
|
154.5
|
42
|
32
|
3.6
|
|
DN65
|
241
|
80
|
20
|
145
|
110
|
168
|
45
|
47
|
4.05
|
|
DN80
|
275.5
|
92
|
20
|
160
|
124
|
219
|
45
|
65
|
5.81
|
|
DN100
|
356.5
|
107
|
20
|
180
|
158
|
354
|
52
|
91
|
8.41
|
|
DN125
|
401
|
121
|
20
|
210
|
187
|
417
|
55
|
112
|
11.08
|
|
DN150
|
441
|
134
|
23
|
240
|
214
|
452
|
56
|
146
|
18.13
|
|
DN200
|
579
|
170
|
23
|
295
|
266
|
671
|
61
|
194
|
23.14
|
|
DN250
|
658.5
|
208
|
23
|
350
|
325
|
723
|
66
|
242
|
33.35
|
|
26
|
355
|
|
DN300
|
777
|
240
|
23
|
400
|
380
|
935
|
77
|
292
|
40.89
|
|
26
|
410
|
|
DN350
|
871
|
265
|
23
|
460
|
422
|
1035
|
77
|
325
|
57.43
|
|
26
|
470
|
|
名稱Name
|
材料Materials
|
|
閥體Body
|
灰鑄鐵、球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316，Stainless Steel 316L
|
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
|
閥座Seat
|
三元乙丙、丁腈、聚四氟乙烯、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
|
|

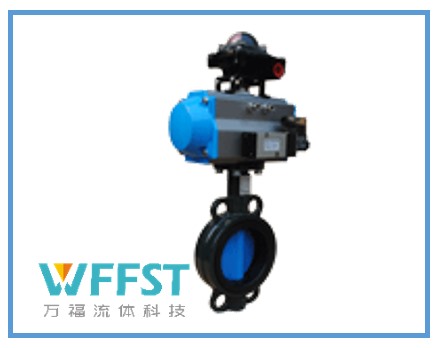

產(chǎn)品型號Products Model
|
WF660D67A1X-10/16
|
|
公稱通徑(mm)Normal Diameter
|
DN40-DN600
|
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
|
適用介質(zhì)Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
適用溫度Applicable temperature
|
-10～110℃
|
|
