規(guī)格
|
H
|
H0
|
L
|
L1
|
PN1.0MPa
|
PN1.6MPa
|
|
D1
|
D
|
Z-Φd
|
D1
|
D
|
Z-Φd
|
|
DN50
|
75
|
344
|
108
|
161
|
125
|
165
|
4-Φ18
|
125
|
165
|
4-Φ18
|
|
DN65
|
93
|
344
|
112
|
161
|
145
|
185
|
4-Φ18
|
145
|
185
|
4-Φ18
|
|
DN80
|
98
|
374
|
114
|
161
|
160
|
200
|
8-Φ18
|
160
|
200
|
8-Φ18
|
|
DN100
|
130
|
386
|
127
|
188
|
180
|
220
|
8-Φ18
|
180
|
220
|
8-Φ18
|
|
DN125
|
165
|
396
|
140
|
188
|
210
|
250
|
8-Φ18
|
210
|
250
|
8-Φ18
|
|
DN150
|
175
|
436
|
140
|
188
|
240
|
285
|
8-Φ22
|
240
|
285
|
8-Φ22
|
|
DN200
|
220
|
487
|
152
|
268
|
295
|
340
|
8-Φ22
|
295
|
340
|
12-Φ22
|
|
DN250
|
250
|
517
|
165
|
268
|
350
|
395
|
12-Φ22
|
355
|
405
|
12-Φ26
|
|
DN300
|
300
|
567
|
178
|
268
|
400
|
445
|
12-Φ22
|
410
|
460
|
12-Φ26
|
|
DN350
|
330
|
607
|
190
|
268
|
460
|
505
|
16-Φ22
|
470
|
520
|
16-Φ26
|
|
DN400
|
360
|
635
|
216
|
268
|
515
|
565
|
16-Φ26
|
525
|
580
|
16-Φ30
|
|
DN450
|
380
|
714
|
222
|
268
|
565
|
615
|
20-Φ26
|
585
|
640
|
20-Φ30
|
|
DN500
|
410
|
729
|
229
|
268
|
620
|
670
|
20-Φ26
|
650
|
715
|
20-Φ33
|
|
DN600
|
460
|
942
|
267
|
368
|
725
|
780
|
20-Φ30
|
770
|
840
|
20-Φ36
|
|
名稱Name
|
材料Materials
|
|
閥體Body
|
鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
|
閥板Disc
|
鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
|
閥座Seat
|
硬密封hard sealing
|
|
閥軸Stem
|
鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
|

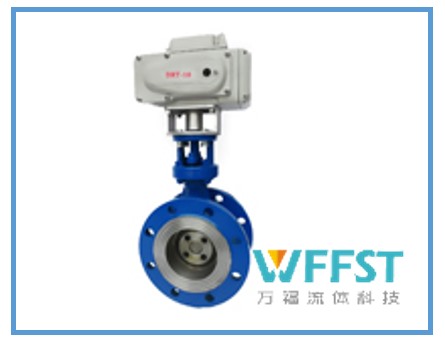

產品型號Products Model
|
WF593D973H/W-10/16/25
|
|
公稱通徑(mm)Normal Diameter
|
DN50-DN600
|
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-2.5MPa
|
|
適用介質Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
適用溫度Applicable temperature
|
-40～400℃
|
|
